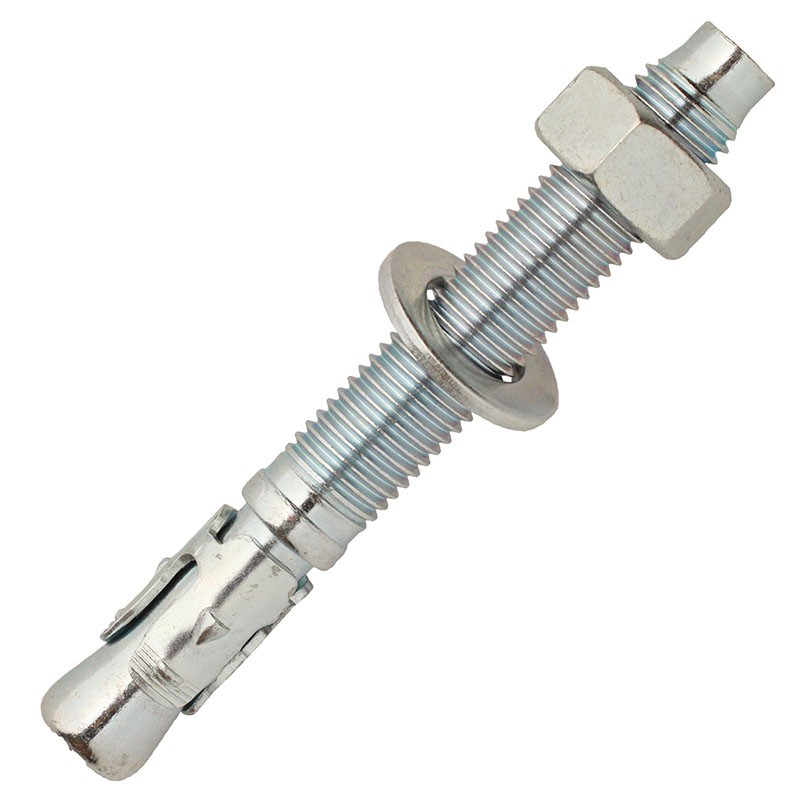

Kotwa trzpieniowa - ETA opcja 1 - ocynk galwaniczny

Przeznaczenie

Średnie i ciężkie zamocowania w betonie i betonie spękanym.

Standard

Szybka instalacja poprzez mocowany materiał.

Praktyczna

Długi zabezpieczony gwint.

Pobierania formacie PDF

Wymiary

Informacje techniczne

Średnica długość tfix ØZdolność przewiercania h1 SW tinst Lf Referencyjny
Średnica Longueur
mm
épaisseur à fixer
mm
Ø perçage
mm
Prof perçage
mm
Ouverture de clé
mm
Couple de serrage N. Longueur de filetage
M8 60 5 8 55 8 32 25 BZPLUS08060
Średnica : M8
długość : 60
tfix : 5
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 25
M8 75 20 8 55 8 32 40 BZPLUS08075
Średnica : M8
długość : 75
tfix : 20
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 40
M8 85 32 8 55 8 32 50 BZPLUS08085
Średnica : M8
długość : 85
tfix : 32
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 50
M8 95 40 8 55 8 32 60 BZPLUS08095
Średnica : M8
długość : 95
tfix : 40
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 60
M8 105 50 8 55 8 32 70 BZPLUS08105
Średnica : M8
długość : 105
tfix : 50
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 70
M8 130 75 8 55 8 32 95 BZPLUS08130
Średnica : M8
długość : 130
tfix : 75
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 95
M8 155 100 8 55 8 32 120 BZPLUS08155
Średnica : M8
długość : 155
tfix : 100
ØZdolność przewiercania : 8
h1 : 55
SW : 8
tinst : 32
Lf : 120
M10 85 5 10 75 10 50 50 BZPLUS10085
Średnica : M10
długość : 85
tfix : 5
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 50
M10 90 10 10 75 10 50 55 BZPLUS10090
Średnica : M10
długość : 90
tfix : 10
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 55
M10 100 20 10 75 10 50 65 BZPLUS10100
Średnica : M10
długość : 100
tfix : 20
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 65
M10 110 32 10 75 10 50 75 BZPLUS10110
Średnica : M10
długość : 110
tfix : 32
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 75
M10 120 40 10 75 10 50 85 BZPLUS10120
Średnica : M10
długość : 120
tfix : 40
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 85
M10 130 50 10 75 10 50 95 BZPLUS10130
Średnica : M10
długość : 130
tfix : 50
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 95
M10 160 80 10 75 10 50 125 BZPLUS10160
Średnica : M10
długość : 160
tfix : 80
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 125
M10 180 100 10 75 10 50 145 BZPLUS10180
Średnica : M10
długość : 180
tfix : 100
ØZdolność przewiercania : 10
h1 : 75
SW : 10
tinst : 50
Lf : 145
M12 90 5 12 75 19 70 50 BZPLUS12090
Średnica : M12
długość : 90
tfix : 5
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 50
M12 100 15 12 75 19 70 60 BZPLUS12100
Średnica : M12
długość : 100
tfix : 15
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 60
M12 115 32 12 75 19 70 75 BZPLUS12115
Średnica : M12
długość : 115
tfix : 32
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 75
M12 135 50 12 75 19 70 95 BZPLUS12135
Średnica : M12
długość : 135
tfix : 50
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 95
M12 165 80 12 75 19 70 125 BZPLUS12165
Średnica : M12
długość : 165
tfix : 80
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 125
M12 175 90 12 75 19 70 135 BZPLUS12175
Średnica : M12
długość : 175
tfix : 90
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 135
M12 185 100 12 75 19 70 145 BZPLUS12185
Średnica : M12
długość : 185
tfix : 100
ØZdolność przewiercania : 12
h1 : 75
SW : 19
tinst : 70
Lf : 145
M16 115 5 16 100 24 130 65 BZPLUS16115
Średnica : M16
długość : 115
tfix : 5
ØZdolność przewiercania : 16
h1 : 100
SW : 24
tinst : 130
Lf : 65
M16 125 15 16 100 24 130 75 BZPLUS16125
Średnica : M16
długość : 125
tfix : 15
ØZdolność przewiercania : 16
h1 : 100
SW : 24
tinst : 130
Lf : 75
M16 150 40 16 100 24 130 100 BZPLUS16150
Średnica : M16
długość : 150
tfix : 40
ØZdolność przewiercania : 16
h1 : 100
SW : 24
tinst : 130
Lf : 100
